The Backbone of Precision: Why Ball Screws Are Vital in CNC Machining

In the world of Computer Numerical Control (CNC) machining, precision is not just a goal; it is the currency of the trade. Whether a machine is carving a intricate mold from tool steel or shaping a prototype from aluminum, the difference between a perfect part and scrap often comes down to microns. While spindles and cutting tools get much of the spotlight, there is an unsung hero quietly working beneath the surface: the ball screw.

Without the ball screw, the modern CNC machine would lack the speed, accuracy, and reliability that manufacturers have come to depend on. Here is a look at how this critical component works and why it is indispensable in CNC applications. What is a Ball Screw?

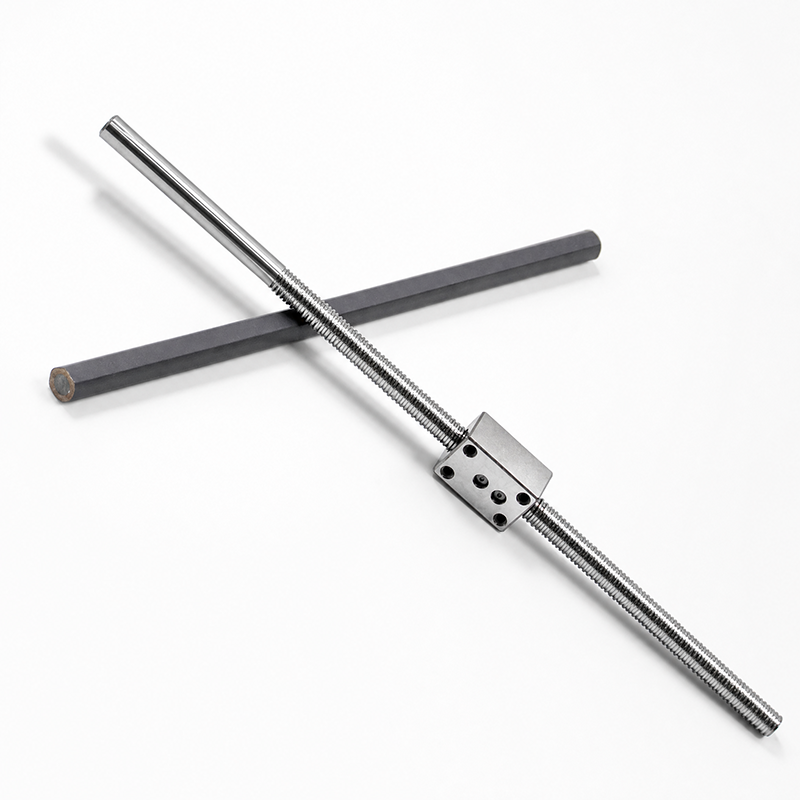

At its core, a ball screw is a mechanical linear actuator designed to convert rotational motion (from a motor) into linear motion (moving the machine’s table or spindle). It consists of three main parts:

• The Screw Shaft: A threaded rod with a precision-ground or rolled helical groove.

• The Ball Nut: A nut that houses a recirculating system of ball bearings.

• The Ball Bearings: Small, hardened steel balls that fit into the grooves between the screw and the nut.

As the screw rotates, the ball bearings circulate inside the nut, rolling along the races. This design replaces the metal-on-metal sliding contact found in traditional leadscrews with low-friction rolling contact.

The Shift from Acme Leadscrews

Older manual milling machines and early CNC conversions often relied on Acme leadscrews. While these are cost-effective and self-locking, they suffer from inherent backlash (the "slop" between the screw and the nut) and high friction.

For CNC applications, this is unacceptable. Backlash leads to inaccuracies in contouring, causing mismatched cuts when the machine reverses direction. As speeds and feeds increased in the CNC era, the friction of Acme screws led to overheating and rapid wear. The ball screw solved these problems by introducing a system that is mechanically efficient and virtually backlash-free.

Why CNC Machines Rely on Ball Screws

1. Precision and Repeatability

The primary reason ball screws dominate CNC machining is their ability to provide precise positioning. By using preloaded nuts (where oversized balls are inserted to eliminate any gap between the screw and nut), ball screws achieve zero backlash. This ensures that when a CNC controller commands the axis to move 1.000 mm, it arrives at exactly 1.000 mm, regardless of the direction of approach.

2. High Efficiency

Ball screws typically operate with an efficiency rating of 90% to 95%. This is a massive improvement over the 30% to 50% efficiency of Acme leadscrews. Higher efficiency means the servo or stepper motors require less torque to move the axis. This allows for faster acceleration, higher rapids speeds, and smaller (or more responsive) motors.

3. Rigidity and Load Capacity

CNC machining involves significant cutting forces. Ball screws are exceptionally rigid. Because the rolling elements are in constant contact (under preload), there is minimal deflection under load. This rigidity allows for aggressive material removal rates (heavy cuts) without sacrificing surface finish or dimensional accuracy.

4. Longevity and Heat Management

Friction generates heat, and heat is the enemy of precision. When metal heats up, it expands, leading to lost positioning accuracy. Because ball screws utilize rolling friction rather than sliding friction, they generate significantly less heat than traditional leadscrews. When coupled with proper lubrication, modern ball screws can run for tens of thousands of hours with minimal wear, ensuring the machine holds its tolerances for years.

Types of Ball Screws in CNC

Not all ball screws are created equal. Manufacturers typically choose between two grades:

• Ground Ball Screws: These are manufactured to the highest tolerances. The races are precision-ground after heat treatment. They are expensive and slow to produce but offer the highest accuracy (often P3, P2, or P1 grade). High-end machining centers, jig grinders, and precision die/mold machines use ground ball screws.

• Rolled Ball Screws: These are formed by cold rolling the threads. They are more affordable, faster to manufacture, and suitable for the vast majority of CNC applications, including wood routers, plasma tables, and general-purpose milling machines. While they have slightly lower accuracy than ground screws, modern rolled screws can still achieve excellent precision (often P5 to P7 grade).

Installation: Fixed vs. Supported

For a CNC machine to perform optimally, the ball screw must be correctly mounted. Most industrial CNCs use a Fixed-Supported or Fixed-Fixed mounting configuration:

• Fixed End: The screw is secured with angular contact bearings that lock the shaft axially, preventing movement along the axis and absorbing thrust loads.

• Supported End: The opposite end floats in a radial bearing, allowing the screw to expand thermally without buckling.

This setup ensures that the screw remains taut and stable, maximizing critical speed (the RPM at which the screw begins to whip) and rigidity.

Maintenance Considerations

While ball screws are robust, they are sensitive to contamination. In a CNC environment, chips, abrasive dust, and coolant are everywhere. If these contaminants enter the ball nut, they can cause rapid wear or binding.

To prevent this, most CNC machines employ:

• Wiper Seals: Installed on the ends of the ball nut to scrape off debris.

• Way Covers: Telescoping steel covers that protect the screw from chips.

• Proper Lubrication: Using the correct grease or oil (often lithium-based or specific ISO VG oils) to maintain a lubricating film on the balls and races.

Conclusion

The ball screw is the defining component that separates a hobby-grade machine from a professional CNC machining center. It is the mechanism that translates the digital instructions of the code into physical reality with high fidelity.

As CNC technology continues to evolve toward higher speeds and tighter tolerances, the ball screw remains the standard for linear motion. While linear motors are gaining ground in ultra-high-speed applications, the ball screw’s combination of mechanical advantage, rigidity, cost-effectiveness, and proven reliability ensures that it will remain the backbone of CNC machining for decades to come.

Whether you are building a custom CNC router or maintaining a million-dollar VMC, paying attention to the health and quality of your ball screws is one of the best investments you can make in your machine’s performance.
